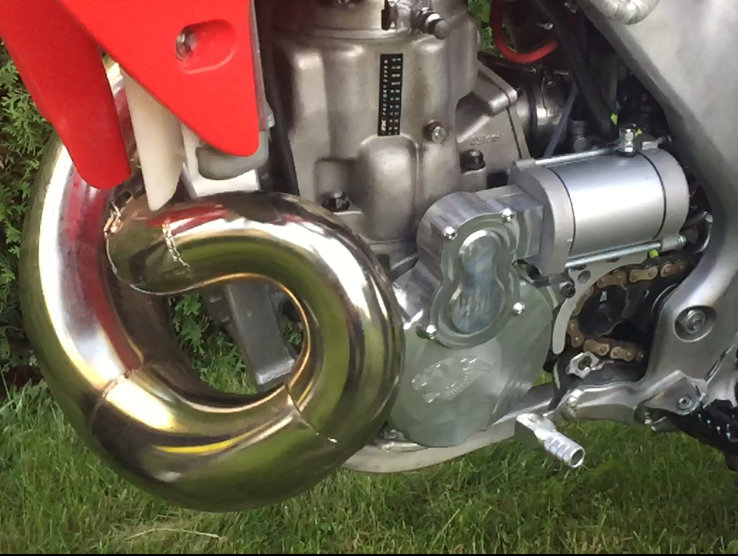

CR500 electric start



Panthera electric starter has been designed to fit the panthera engines as well as oem cr500 cases. No modification to the original engine is needed, this is a bolt on set up.

The unit uses honda CRF450x stator to produce the power for battery charging and other accessories. A modified, backward oriented CRF450x flywheel is also used to which a oneway clutch and a ring gear is coupled.

The billet Panthera starter cover comes with an assembly of gears, all mounted on sealed bearing, no fast worn out bushing like other manufacturers.

The unit comes with its own extra strong electric motor which is capable of starting a standard CR500 without the need of a decompressor.

Additional weight for the whole unit is 6 pounds.

*The starter will not fit the old PJ carb with the big fuel inlet. Carb modification is needed.
