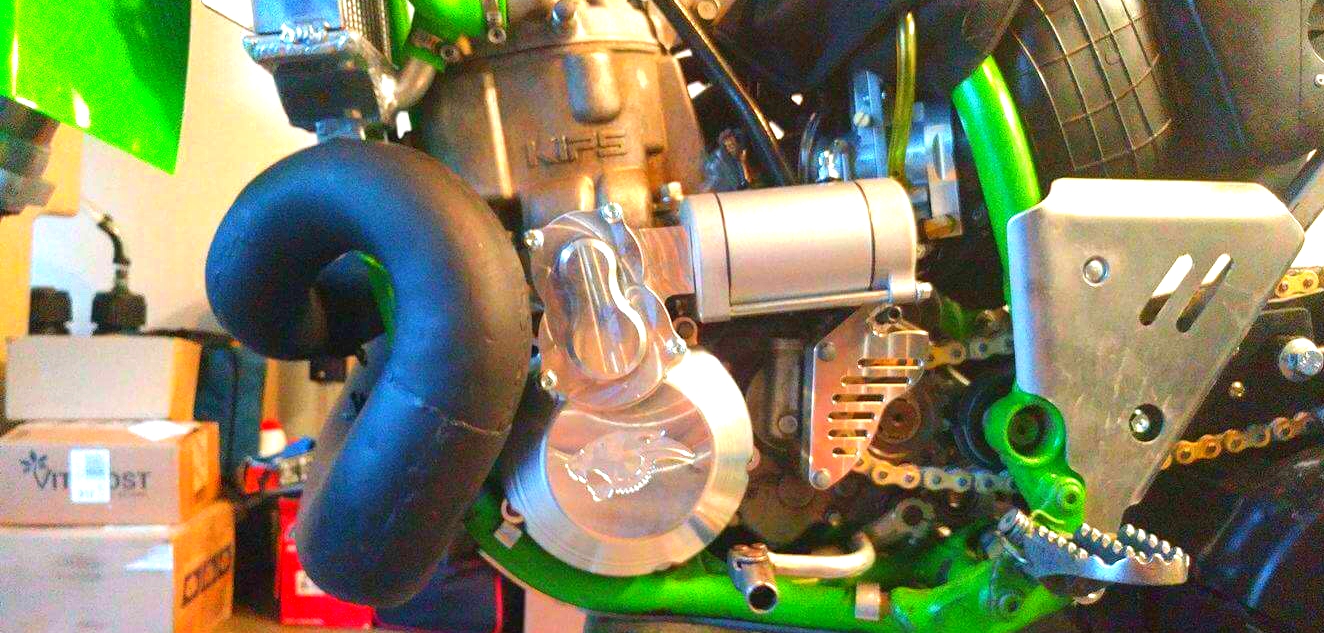

Panthera KX500 electric starter has been designed KX500 cases. No modification to the original engine is needed, this is a bolt on set up.
The unit uses a Powerdynamo kit to produce the power for battery charging and other accessories. Powerdynamo kits comes with their own CDI/coil unit. All wiring are included. A modified flywheel is used to which a oneway clutch and a ring gear is coupled.
The billet Panthera starter cover comes with an assembly of gears, all mounted on sealed bearing, no fast worn out bushing like other manufacturers.
The unit comes with its own extra strong electric motor which is capable of starting a standard KX500 without the need of a decompressor.
Additional weight for the whole unit is 6 pounds.
